Introduction |
| Brand |
Samsung |
| Model |

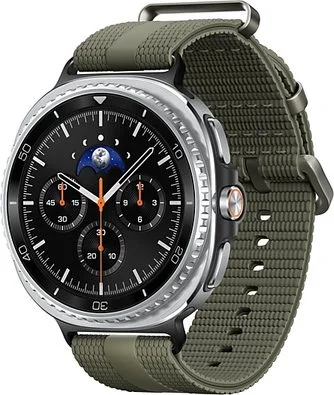

SM-L505U Galaxy Watch8 Classic 46mm TD-LTE US |
| Released |
2025 Jul 24 |
| 発表時期 |
2025 Jul 9 |
| Hardware Designer |
Samsung Electronics |
| Manufacturer |
Samsung Electronics |
| Codename |
Samsung L500 |
| OEM ID |
L505UZKDXAA |
| Device Category |
Smartwatch |
|
Physical Attributes |
| Width |
46 mm |
| Height |
46.4 mm |
| Depth |
10.6 mm |
| 寸法 |
1.81x1.83x0.42 inches |
| Mass |
63.5 g |
|
Software Environment |
| プラットフォーム |
Linux |
| Operating System |
Google Wear OS 6 |
| Software Extras |
Voice Command , Navigation software , Intelligent personal assistant |
|
Application processor, Chipset |
| CPU Clock |
1600 MHz |
| CPU |
Samsung Exynos W1000 S5E5535, 2024, 64 bit, penta-core, 3 nm, ARM Mali-G68 GPU |
|
Operative Memory |
| RAM Type |
LPDDR5 SDRAM |
| RAM Capacity (converted) |
2 GiB RAM |
|
Non-volatile Memory |
| Non-volatile Memory Interface |
eMMC 5.1 |
| Non-volatile Memory Capacity (converted) |
64 GB ROM |
|
ディスプレイ |
| Display Diagonal |
34.04 mm |
| 解像度 |
438x438 |
| Horizontal Full Bezel Width |
21.93 mm |
| Display Area Utilization |
27.1% |
| Pixel Density |
462 PPI |
| Display Type |
AM-OLED display |
| Display Subtype |
Super AM-OLED |
| Number of Display Scales |
16.8M |
| Display Refresh Rate |
60 Hz |
| Scratch Resistant Screen |
Sapphire Glass |
|
Graphical Subsystem |
| Graphical Controller |
ARM Mali-G68MP2 |
|
Audio/Video Interfaces |
| A/V Out |
No |
|
Audio Subsystem |
| Microphone(s) |
mono |
| Loudspeaker(s) |
mono |
| Audio Output |
No |
|
Cellular Phone |
| Supported Cellular Bands |
UMTS2100 (B1) , UMTS1900 (B2) , UMTS1700/2100 (B4) , UMTS850 (B5) , UMTS900 (B8) , LTE2100 (B1) , LTE1900 (B2) , LTE1800 (B3) , LTE1700/2100 (B4) , LTE850 (B5) , LTE2600 (B7) , LTE900 (B8) , LTE700 (B12) , LTE700 (B13) , LTE700 (B14) , LTE800 (B18) , LTE800 (B19) , LTE800 (B20) , LTE1900 (B25) , LTE850 (B26) , LTE700 (B28) , TD-LTE2000 (B34) , TD-LTE2600 (B38) , TD-LTE1900 (B39) , TD-LTE2300 (B40) , TD-LTE2500 (B41) , LTE1700/2100 (B66) , LTE600 (B71) bands |
| Supported Cellular Data Links |
UMTS , HSUPA , HSUPA 5.8 , HSDPA , HSPA+ 21.1 , LTE , LTE 100/50 , LTE 150/50 data links |
| SIM Card Slot |
e-SIM |
| Complementary Phone Services |
Voice transmission , Vibrate , Speakerphone |
|
Secondary Cellular Phone |
| Sec. Supported Cellular Networks |
No |
|
Control Peripherals |
| Touchscreen Type |
Capacitive multi-touch screen |
|
Communication Interfaces |
| Expansion Interfaces |
No |
| USB端子 |
No |
| USB Connector |
No |
| Bluetooth |
Bluetooth 5.3 |
| Wireless LAN |
802.11a , 802.11b , 802.11g , 802.11n |
| NFC |
NFC A , NFC B |
|
Multimedia Broadcast |
| FM Radio Receiver |
No |
|
Satellite Navigation |
| Complementary Satellite Services |
A-GPS , Dual-frequency GPS , QuickGPS , Satellite SOS |
| Supported GLONASS protocol(s) |
L1OF |
| Supported Galileo service(s) |
E1 |
| Supported BeiDou system (BDS) |
B1I BeiDou receiver |
|
Primary Camera System |
| Camera Image Sensor |
No |
| Focus |
No |
| Flash |
No |
| Aux. Camera Image Sensor |
No |
| Aux. 2 Camera Image Sensor |
No |
| Aux. 3 Camera Image Sensor |
No |
| Aux. 4 Camera Image Sensor |
No |
|
Secondary Camera System |
| Secondary Camera Sensor |
No |
| Sec. Aux. Cam. Image Sensor |
No |
|
Built-in Sensors |
| Built-in accelerometer |
Yes |
| Built-in gyroscope |
Yes |
| Additional sensors |
Barometer , BIA , Hall , HR sensor , SpO2 sensor , L sensor , Step counter , AS , Thermometer |
|
Ingress Protection |
| Protection from solid materials |
6 Totally protected from dust |
| Protection from liquids |
8 Protected against immersion beyond 1m of depth |
| Immersion into liquids (depth limit) |
5000 cm |
| Military Standard Compliance (MIL-STD) |
MIL-STD-810H |
|
Power Supply |
| バッテリー |
Li-ion |
| Nominal Battery Capacity |
445 mAh battery |
| Estimated Battery Life |
40.0 hours |
| Wireless Charging |
Qi |
| Max. Wireless Charging Power |
10.0 W |
|
Geographical Attributes |
| Market Countries |
USA |
| Market Regions |
North America |
| Mobile Operator |
AT&T Mobility T-Mobile USA Verizon Wireless |
| 価格 |
549.99 |
|
Datasheet Attributes |
| Data Integrity |
Final |
| Added |
2026-03-06 22:39 |
