Introduction |
| Brand |
Samsung |
| Model |

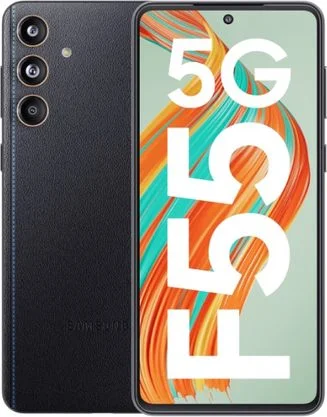

SM-E556B/DS Galaxy F55 5G 2024 Standard Edition Global TD-LTE 256GB |
| Released |
2024 May 27 |
| 発表時期 |
2024 May 17 |
| Hardware Designer |
Samsung Electronics |
| Manufacturer |
Samsung Electronics |
| Codename |
Samsung M556 |
| OEM ID |
E556BZKCINS |
| General Extras |
Haptic touch feedback |
| Device Category |
Smartphone |
|
Physical Attributes |
| Width |
76.5 mm |
| Height |
163.9 mm |
| Depth |
7.8 mm |
| 寸法 |
3.01x6.45x0.31 inches |
| Mass |
180 g |
|
Software Environment |
| プラットフォーム |
Android |
| Operating System |
Google Android 14 (Upside Down Cake) |
| Software Extras |
Voice Command , Navigation software , Face Recognition |
|
Application processor, Chipset |
| CPU Clock |
2400 MHz |
| CPU |
Qualcomm Snapdragon 7 Gen 1 5G SM7450-AB, 2022, 64 bit, octa-core, 3072 Kbyte L2, 4 nm, Qualcomm Adreno 644 GPU |
|
Operative Memory |
| RAM Type |
LPDDR5 SDRAM |
| RAM Capacity (converted) |
8 GiB RAM |
|
Non-volatile Memory |
| Non-volatile Memory Interface |
UFS 3.1 |
| Non-volatile Memory Capacity (converted) |
256 GB ROM |
|
ディスプレイ |
| Display Hole |
1-hole |
| Display Diagonal |
169.5 mm |
| 解像度 |
1080x2400 |
| Horizontal Full Bezel Width |
6.94 mm |
| Display Area Utilization |
85.7% |
| Pixel Density |
394 PPI |
| Display Type |
AM-OLED display |
| Display Subtype |
Super AM-OLED Plus |
| Number of Display Scales |
16.8M |
| Display Refresh Rate |
120 Hz |
| Scratch Resistant Screen |
Gorilla Glass Victus+ |
|
Graphical Subsystem |
| Graphical Controller |
Qualcomm Adreno 644 |
| GPU Clock |
443 MHz |
|
Audio/Video Interfaces |
| A/V Out |
No |
|
Audio Subsystem |
| Microphone(s) |
stereo |
| Loudspeaker(s) |
stereo |
| Audio Output |
USB Type-C |
|
Cellular Phone |
| Supported Cellular Bands |
GSM850 , GSM900 , GSM1800 , GSM1900 , UMTS2100 (B1) , UMTS1900 (B2) , UMTS1700/2100 (B4) , UMTS850 (B5) , UMTS900 (B8) , LTE2100 (B1) , LTE1900 (B2) , LTE1800 (B3) , LTE1700/2100 (B4) , LTE850 (B5) , LTE2600 (B7) , LTE900 (B8) , LTE700 (B12) , LTE700 (B17) , LTE800 (B20) , LTE1900 (B25) , LTE850 (B26) , LTE700 (B28) , TD-LTE2600 (B38) , TD-LTE2300 (B40) , TD-LTE2500 (B41) , LTE1700/2100 (B66) , NR2100 (N1) , NR1800 (N3) , NR850 (N5) , NR2600 (N7) , NR900 (N8) , NR800 (N20) , NR700 (N28) , TD-NR2600 (N38) , TD-NR2300 (N40) , TD-NR2500 (N41) , NR1700/2100 (N66) , TD-NR3700 (N77) , TD-NR3500 (N78) bands |
| Supported Cellular Data Links |
GPRS , GPRS MSC33 , EDGE , EDGE MSC33 , UMTS , HSUPA , HSUPA 5.8 , HSDPA , HSPA+ 21.1 , DC-HSDPA 42.2 , LTE , LTE 100/50 , LTE 150/50 , LTE 300/50 , LTE 600/50 , LTE 1000/100 , LTE 1600 , NR 1500 , NR 2600 , NR 3700 data links |
| SIM Card Slot |
Nano-SIM (4FF) |
| Complementary Phone Services |
Voice transmission , Voice speaker , Vibrate , Speakerphone , ANC , HD Voice , VoLTE |
| SAR (head) |
0.790 W/kg |
| SAR (body) |
1.090 W/kg |
|
Secondary Cellular Phone |
| Dual Cellular Network Operation |
Dual standby |
| Sec. Supported Cellular Networks |
GSM850 , GSM900 , GSM1800 , GSM1900 , UMTS2100 (B1) , UMTS1900 (B2) , UMTS1700/2100 (B4) , UMTS850 (B5) , UMTS900 (B8) , LTE2100 (B1) , LTE1900 (B2) , LTE1800 (B3) , LTE1700/2100 (B4) , LTE850 (B5) , LTE2600 (B7) , LTE900 (B8) , LTE700 (B12) , LTE700 (B17) , LTE800 (B20) , LTE1900 (B25) , LTE850 (B26) , LTE700 (B28) , TD-LTE2600 (B38) , TD-LTE2300 (B40) , TD-LTE2500 (B41) , LTE1700/2100 (B66) , NR2100 (N1) , NR1800 (N3) , NR850 (N5) , NR2600 (N7) , NR900 (N8) , NR800 (N20) , NR700 (N28) , TD-NR2600 (N38) , TD-NR2300 (N40) , TD-NR2500 (N41) , NR1700/2100 (N66) , TD-NR3700 (N77) , TD-NR3500 (N78) |
| Sec. Supported Cellular Data Links |
GPRS , GPRS MSC33 , EDGE , EDGE MSC33 , UMTS , HSUPA , HSUPA 5.8 , HSDPA , HSPA+ 21.1 , DC-HSDPA 42.2 , LTE , LTE 100/50 , LTE 150/50 , LTE 300/50 , LTE 600/50 , LTE 1000/100 , LTE 1600 , NR 1500 , NR 2600 , NR 3700 |
| Sec. SIM Card Slot |
Nano-SIM (4FF) |
|
Control Peripherals |
| Touchscreen Type |
Capacitive multi-touch screen |
|
Communication Interfaces |
| Expansion Interfaces |
TransFlash , microSD , microSDHC , microSDXC |
| USB端子 |
USB 2.0 |
| USB Services |
USB charging , USB fast charging , USB Host , USB OTG 1.3 , USB PD , USB PD 2.0 |
| USB Connector |
USB C reversible |
| Max. Charging Power |
25.0 W charging |
| Bluetooth |
Bluetooth 5.2 |
| Wireless LAN |
802.11a , 802.11b , 802.11g , 802.11n , 802.11ac , 802.11ax |
| Wireless Services |
Wi-Fi Direct , Wi-Fi Tethering |
| NFC |
NFC A , NFC B |
|
Multimedia Broadcast |
| FM Radio Receiver |
No |
|
Satellite Navigation |
| Complementary Satellite Services |
Simultaneous GPS , A-GPS , Geotagging , QuickGPS , QZSS |
| Supported GLONASS protocol(s) |
L1OF |
| Supported Galileo service(s) |
E1 |
| Supported BeiDou system (BDS) |
B1I BeiDou receiver |
|
Primary Camera System |
| Camera Placement |
Rear |
| Camera Image Sensor |
BSI CMOS |
| Image Sensor Pixel Size |
1.00 micrometer |
| Number of effective pixels |
50.1 MP camera |
| Aperture (W) |
f/1.80 |
| Zoom |
1.0 x optical zoom |
| Focus |
PD AF |
| Min. Equiv. Focal Length |
26 mm |
| Video Recording |
3840x2160 pixel |
| Flash |
single LED |
| Camera Extra Functions |
EIS , EIS (video) , OIS , Pixel unification , HDR photo , Red-eye reduction , Slow motion video , Burst mode , Touch focus , Panorama Photo , Face detection , Face tagging , Smile detection , Face retouch |
| Aux. Camera Image Sensor |
BSI CMOS |
| Aux. Cam. Image Sensor Pixel Size |
1.12 micrometer |
| Aux. Camera Number of Pixels |
8.0 MP aux. cam |
| Aux. Camera Aperture (W) |
f/2.20 |
| Aux. Camera Extra Functions |
HDR photo , Burst mode , Panorama Photo , Face detection , Face tagging , Smile detection |
| Aux. 2 Camera Image Sensor |
BSI CMOS |
| Aux. 2 Camera Number of Pixels |
1.9 MP aux. 2 cam |
| Aux. 2 Camera Aperture (W) |
f/2.40 |
| Aux. 3 Camera Image Sensor |
No |
| Aux. 4 Camera Image Sensor |
No |
|
Secondary Camera System |
| Secondary Camera Placement |
Front |
| Secondary Camera Sensor |
BSI CMOS |
| Secondary Camera Number of pixels |
50.1 MP sec. cam |
| Secondary Aperture (W) |
f/2.40 |
| Secondary Video Recording |
3840x2160 pixel |
| Secondary Camera Extra Functions |
HDR photo , Burst mode , Panorama Photo , Face detection , Face tagging , Smile detection , Face retouch , Face retouch (video) |
| Sec. Aux. Cam. Image Sensor |
No |
|
Built-in Sensors |
| Built-in compass |
Yes |
| Built-in accelerometer |
3D accelerometer |
| Built-in gyroscope |
Yes |
| Additional sensors |
In-screen FP sensor , L sensor , P sensor |
|
Ingress Protection |
| Protection from solid materials |
Yes |
| Protection from liquids |
Yes |
|
Power Supply |
| バッテリー |
Li-ion |
| Nominal Battery Capacity |
5000 mAh battery |
| Estimated Battery Life |
25.0 hours |
|
Geographical Attributes |
| Market Countries |
India |
| Market Regions |
Asia |
| 価格 |
29999 |
|
Datasheet Attributes |
| Data Integrity |
Final |
| Added |
2026-03-03 09:46 |
