Introduction |
| Brand |
Huawei |
| Model |

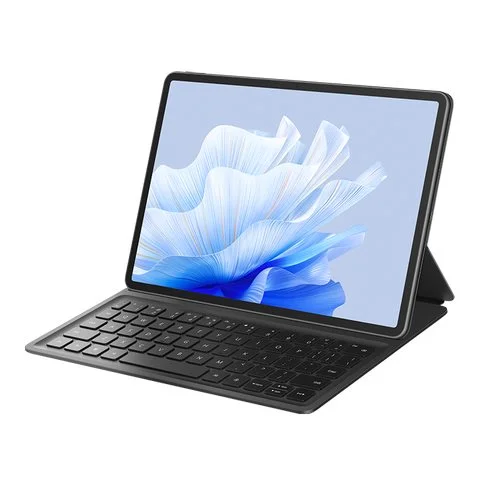

MatePad Air 11.5 2023 WiFi 128GB DBY2-W09 |
| Released |
2023 Jul 7 |
| 発表時期 |
2023 May 18 |
| Hardware Designer |
Huawei |
| Manufacturer |
Huawei |
| Codename |
Huawei Debussy 2 |
| General Extras |
Haptic touch feedback , Active stylus |
| Device Category |
Tablet |
|
Physical Attributes |
| Width |
261.89 mm |
| Height |
178.17 mm |
| Depth |
6.4 mm |
| 寸法 |
10.31x7.01x0.25 inches |
| Mass |
508 g |
|
Software Environment |
| プラットフォーム |
Android |
| Operating System |
Huawei HarmonyOS 3.1 |
| Software Extras |
Voice Command , Navigation software , Augmented Reality (AR) , Intelligent personal assistant , Voice Recognition , Face Recognition |
|
Application processor, Chipset |
| CPU Clock |
2842 MHz |
| CPU |
Qualcomm Snapdragon 888 4G (Lahaina 4G), 2021, 64 bit, octa-core, 5 nm, Qualcomm Adreno 660 GPU |
|
Operative Memory |
| RAM Type |
LPDDR5 SDRAM |
| RAM Capacity (converted) |
8 GiB RAM |
|
Non-volatile Memory |
| Non-volatile Memory Interface |
UFS 3.1 |
| Non-volatile Memory Capacity (converted) |
128 GB ROM |
|
ディスプレイ |
| Display Diagonal |
292 mm |
| 解像度 |
2800x1840 |
| Horizontal Full Bezel Width |
17.86 mm |
| Display Area Utilization |
83.9% |
| Pixel Density |
291 PPI |
| Display Type |
Color IPS TFT LCD display |
| Number of Display Scales |
16.8M |
| Display Refresh Rate |
144 Hz |
| Scratch Resistant Screen |
No |
|
Graphical Subsystem |
| Graphical Controller |
Qualcomm Adreno 660 |
| GPU Clock |
840 MHz |
|
Audio/Video Interfaces |
| A/V Out |
No |
|
Audio Subsystem |
| Microphone(s) |
4 |
| Loudspeaker(s) |
4 |
| Audio Output |
USB Type-C |
|
Cellular Phone |
| Supported Cellular Bands |
No |
|
Secondary Cellular Phone |
| Sec. Supported Cellular Networks |
No |
|
Control Peripherals |
| Touchscreen Type |
Capacitive multi-touch screen |
| Keyboard |
Attachable QWERTY |
|
Communication Interfaces |
| Expansion Interfaces |
No |
| USB端子 |
USB 3.0 / 3.1 Gen 1 / 3.2 Gen 1x1 |
| USB Services |
USB charging , USB fast charging , USB Host , USB OTG 1.3 , USB OTG 2.0 , USB PD , USB PD 2.0 |
| USB Connector |
USB C reversible |
| Max. Charging Power |
40.0 W charging |
| Bluetooth |
Bluetooth 5.2 |
| Wireless LAN |
802.11a , 802.11b , 802.11g , 802.11n , 802.11ac , 802.11ax |
| Wireless Services |
Wi-Fi Direct , Wi-Fi Tethering |
|
Multimedia Broadcast |
| FM Radio Receiver |
No |
|
Satellite Navigation |
| Complementary Satellite Services |
Simultaneous GPS , Geotagging , QuickGPS , QZSS |
| Supported GLONASS protocol(s) |
L1OF |
| Supported Galileo service(s) |
E1 |
| Supported BeiDou system (BDS) |
B1I BeiDou receiver |
|
Primary Camera System |
| Camera Placement |
Rear |
| Camera Image Sensor |
BSI CMOS |
| Image Sensor Pixel Size |
1.12 micrometer |
| Number of effective pixels |
13.1 MP camera |
| Aperture (W) |
f/1.80 |
| Zoom |
1.0 x optical zoom |
| Focus |
CD AF |
| Video Recording |
3840x2160 pixel |
| Flash |
single LED |
| Camera Extra Functions |
HDR photo , Burst mode , Touch focus , Panorama Photo , Face detection , Face tagging , Smile detection , Face retouch |
| Aux. Camera Image Sensor |
No |
| Aux. 2 Camera Image Sensor |
No |
| Aux. 3 Camera Image Sensor |
No |
| Aux. 4 Camera Image Sensor |
No |
|
Secondary Camera System |
| Secondary Camera Placement |
Front |
| Secondary Camera Sensor |
BSI CMOS |
| Secondary Camera Number of pixels |
8.0 MP sec. cam |
| Secondary Aperture (W) |
f/2.00 |
| Secondary Video Recording |
1920x1080 pixel |
| Secondary Camera Extra Functions |
HDR photo , Burst mode , Face detection , Face tagging , Smile detection , Face retouch |
| Sec. Aux. Cam. Image Sensor |
No |
|
Built-in Sensors |
| Built-in compass |
Yes |
| Built-in accelerometer |
3D accelerometer |
| Built-in gyroscope |
Yes |
| Additional sensors |
Hall , L sensor |
|
Ingress Protection |
| Protection from solid materials |
Yes |
| Protection from liquids |
Yes |
|
Power Supply |
| バッテリー |
Li-ion polymer (LiPo) |
| Nominal Battery Capacity |
8300 mAh battery |
|
Geographical Attributes |
| Market Countries |
Austria , Bahrain , Belarus , Belgium , Bolivia , Bulgaria , Colombia , Cyprus , Croatia , Czech , Estonia , Finland , France , Germany , Greece , Hungary , Indonesia , Ireland , Italy , Jordan , Kazakhstan , Kuwait , Latvia , Lithuania , Lebanon , Luxembourg , Netherlands , Norway , Oman , Poland , Portugal , Qatar , Romania , Russia , Saudi Arabia , Serbia , Slovakia , Slovenia , Spain , Sweden , Switzerland , Thailand , Turkey , UAE , UK |
| Market Regions |
Asia , Eastern Europe , Europe , Middle East , South America , Southeast Asia , Western Europe |
| 価格 |
46990 |
|
Datasheet Attributes |
| Data Integrity |
Final |
| Added |
2024-10-03 10:42 |
